Normal Pictch Permanent Magnetic Chuck

Normal Pictch Permanent Magnetic Chuck

Categories ,
Enquiry
Previous Post
Next Post
  • Description

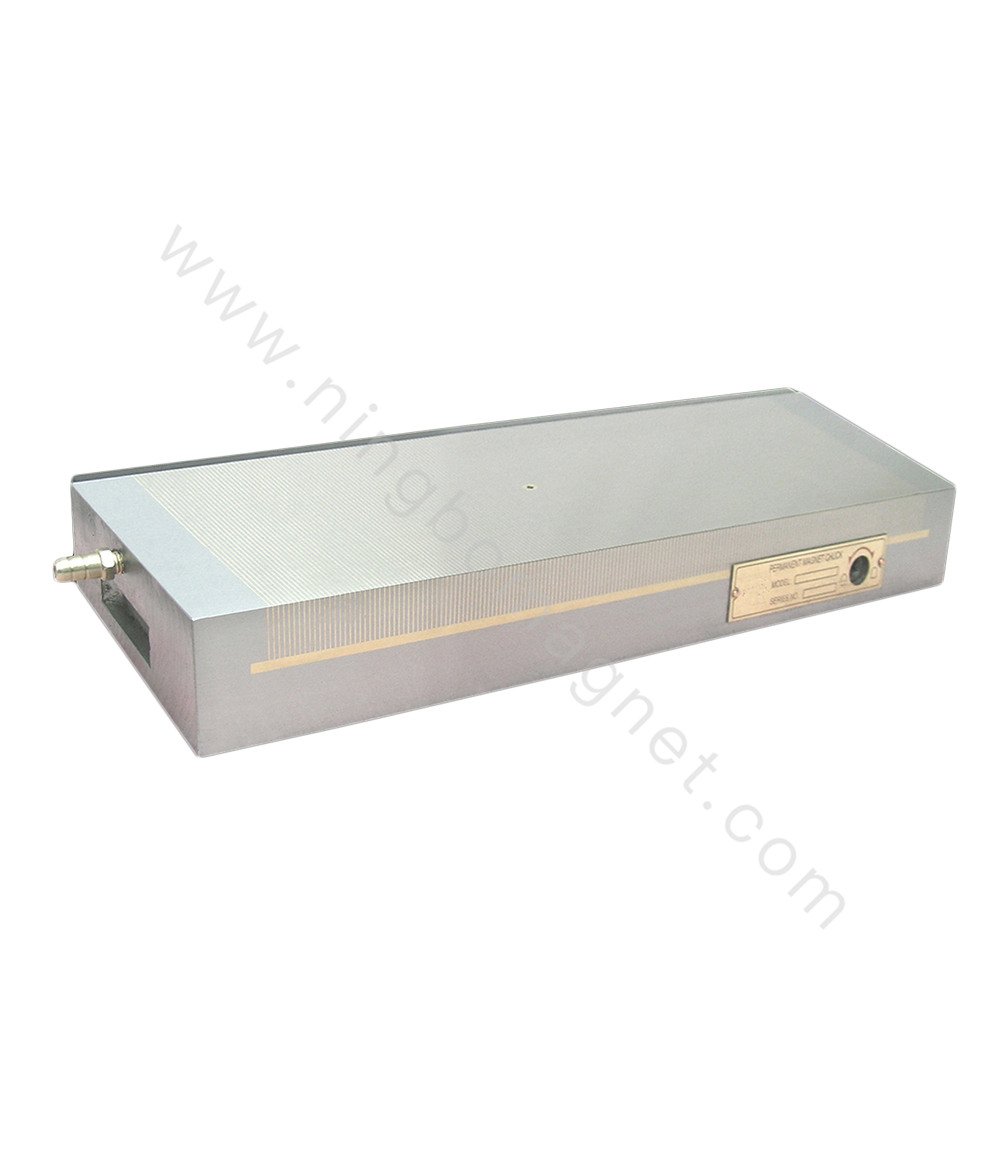

    Normal Pitch Permanent Magnetic Chuck
    Excellent holding power with low energy consumption.
    Suitable for grinding application, holding components on grinding matchines.
    Available in diameter from 12mm ~600mm
    Features
    1, All metal top plates-hard wearing brass and steel
    2, Extra strong magnetic force and less remaining magnetism
    3, While turning magnetic for ON/OFF, the face’s accuracy of magnetic force surface doesn’t change and can keep high precision processing surface;
    4, Coolant and water proof structure
    5, Easy to operate handle
    6, High performance at a competitive price
    Model L B H T P Magnetic(N/cm2) Weight(Kg)
    X411010 100 100 45 18 1 +3 140N
    120N
    100N
    80N    		 3.6
    X411670 160 70 45 18 4
    X411515 150 150 48 20 8
    X411520 200 48 11
    X411525 250 48 13.8
    X411530 300 48 16.8
    X411535 350 48 19.6
    X411540 400 53 23.8
    X411545 450 53 26.5
    X412020 200 200 48 22 15
    X412025 250 48 18.5
    X412035 350 53 28.5
    X412040 400 53 31.8
    X412045 450 53 39.5
    X412550 500 250 58 23 53.5
    X413006  600  300  58  77
